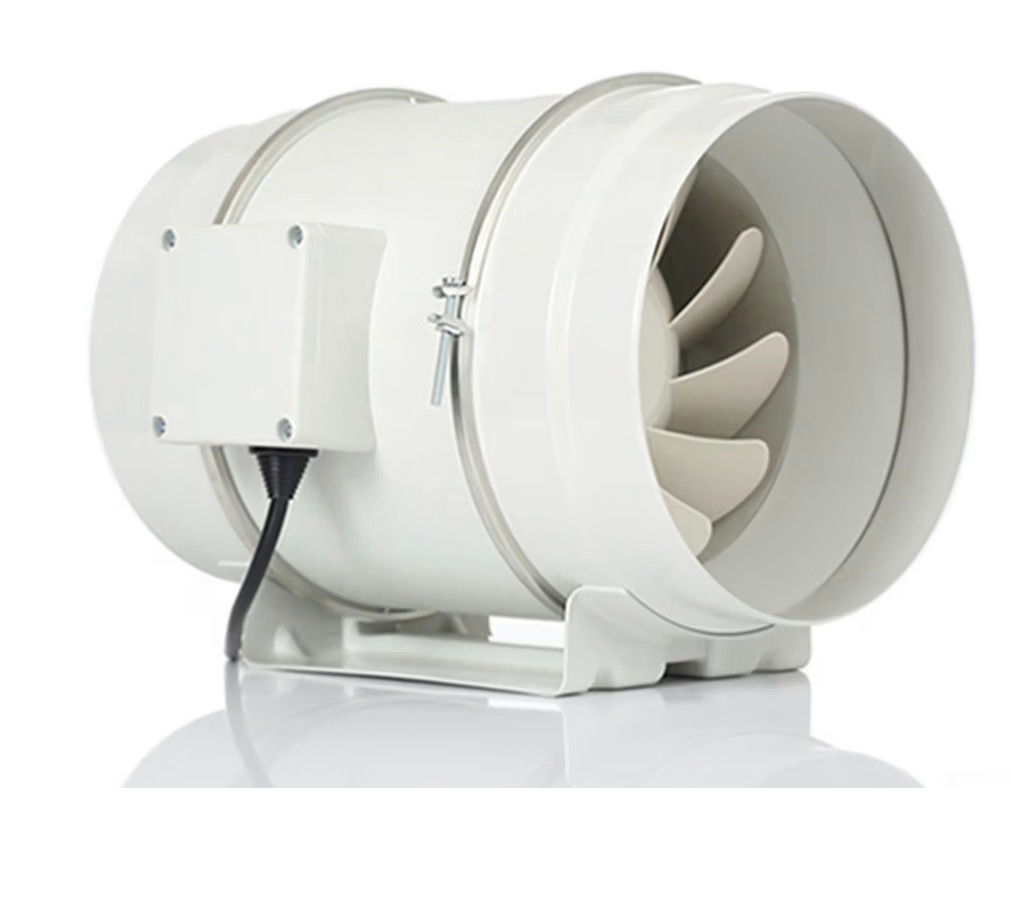

Product Name: 125 mm Two Speeds Mixed-Flow Inline Fan (MIXFLOW-125)
Overview:
The MIXFLOW-125 mixed-flow inline fan is designed for efficient duct ventilation in HVAC systems. With two selectable speed options, it provides high airflow performance while maintaining low noise. Its compact inline design allows easy integration into ducts for extraction and circulation in residential, commercial, and light industrial applications.
Key Features:
Mixed-flow impeller for high efficiency and stable airflow
Dual-speed control for flexible ventilation needs
Quiet operation: as low as 26 dB(A) at 3 m
Compact inline structure, lightweight at only 1.5 kg
Durable construction, optimized for HVAC use
Specifications:
Model: MIXFLOW-125
Duct Size: 125 mm
Voltage/Frequency: 220–240 V / 50 Hz
Speed Options: 2 (High / Low)
Current: High 0.14 A / Low 0.13 A
Power Consumption: High 33 W / Low 28 W
Rotational Speed: High 2250 rpm / Low 1850 rpm
Airflow: High 284 m³/h / Low 248 m³/h
Static Pressure: High 159 Pa / Low 106 Pa
Noise Level (@3 m): High 32 dB(A) / Low 26 dB(A)
Net Weight: 1.5 kg
Usage Scenarios:
Ducted ventilation for bathrooms, kitchens, and utility rooms
Air extraction and circulation in HVAC duct systems
Suitable for residential, commercial, and light industrial projects
